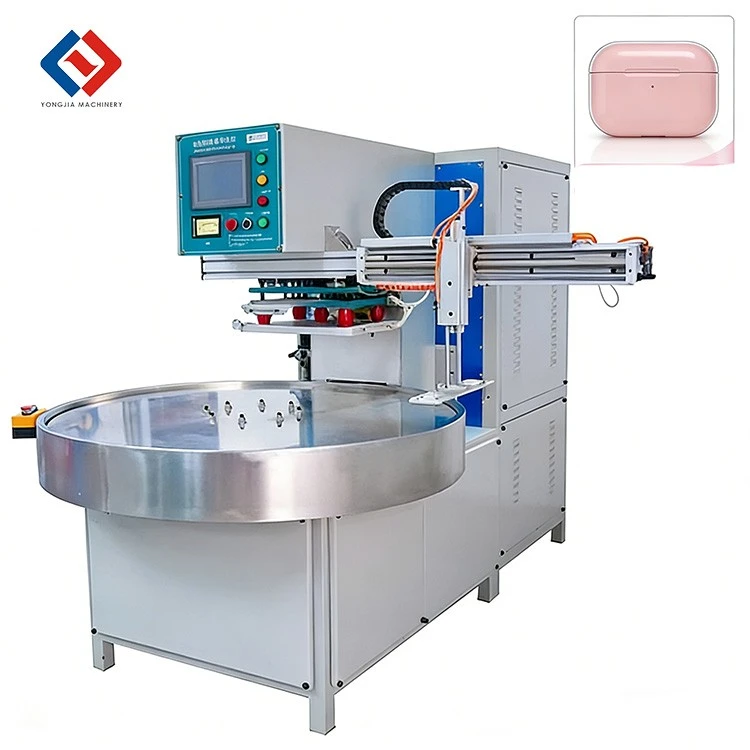

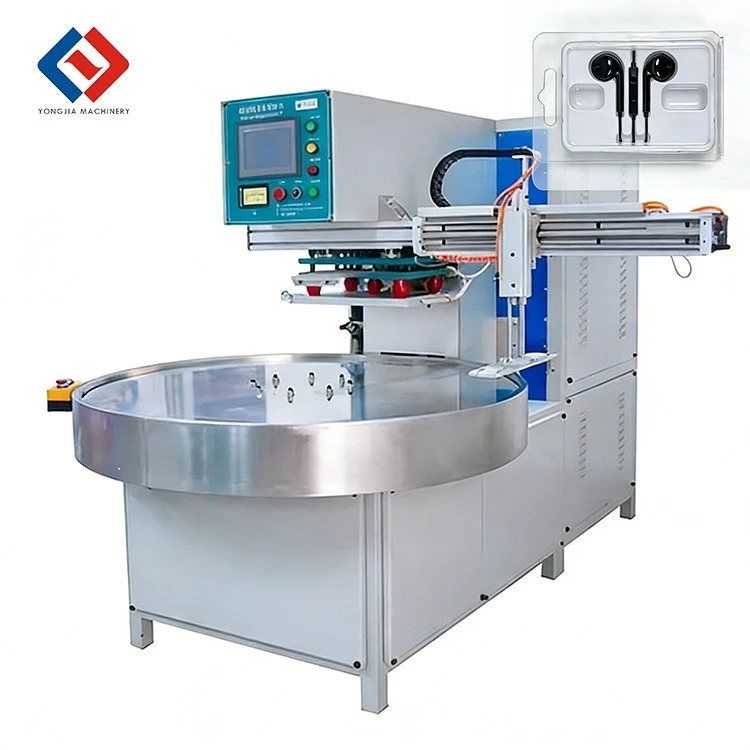

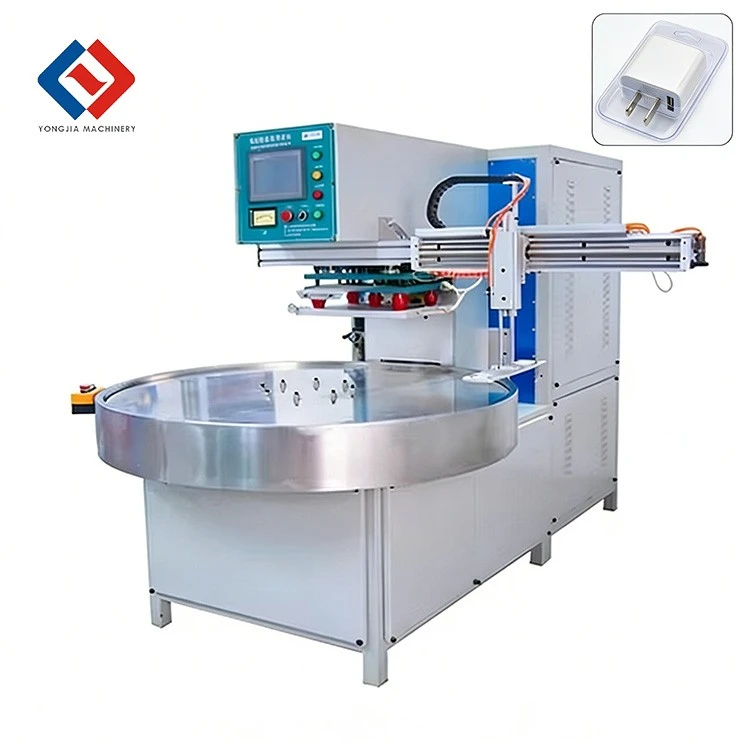

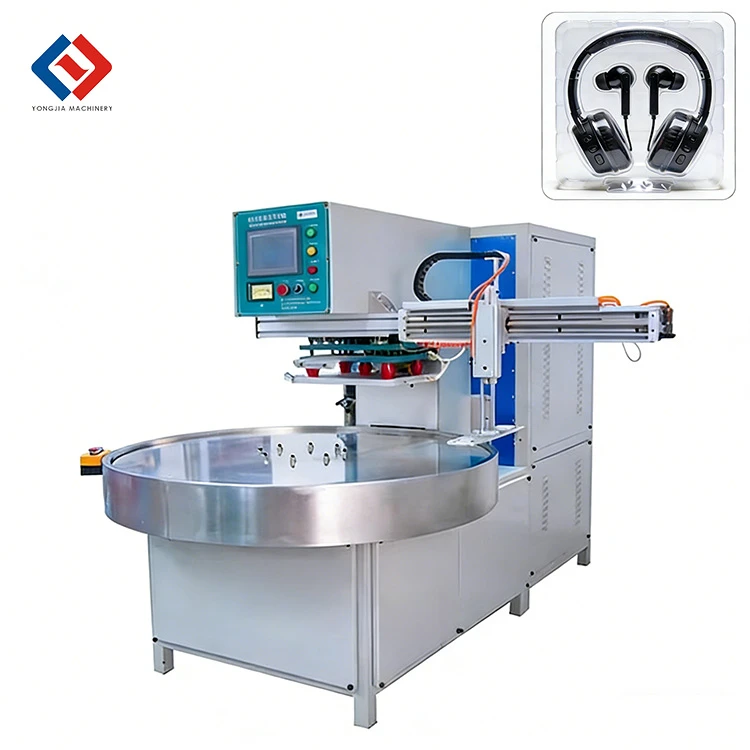

High zaus Blister Sealing Tshuab
Lub Zog: 8KW 10KW 12KW
Voltage: 380V 3P 380V 3P 380V 3P
Zaus: 27.12MHz 27.12MHz 27.12MHz
Lub zog hluav taws xob: 15KVA 18KVA 22KVA
Xa kev nug
Product Details ofHigh zaus Blister Sealing Tshuab
Khoom Taw Qhia
Thaum ntim cov khoom siv hluav taws xob me me xws li USB chargers thiab lub mloog pob ntseg hauv cov chaw tsim khoom siv hluav taws xob, kev tuav cov khoom ua ntej - tsim cov thawv ntawv thiab daim npav tsis zoo xwb, tab sis kuj ua rau daim npav tsis zoo thiab tsis zoo sealing, ua rau cov khoom poob los yog khawb thaum thauj. Lub tshuab blister sealing tshuab no siv lub rooj sib txuas ntau- chaw nres tsheb hloov chaw ua haujlwm ua ke nrog photoelectric precision positioning technology. Nws tuaj yeem tsis tsuas yog txo cov kauj ruam ntawm kev ua haujlwm, tab sis kuj tseem ua kom raug cov ntawv phaib thiab cov thawv blister, txo cov nqi ntim khoom, thiab ua tau raws li qhov xav tau ntawm cov khoom siv me me ntawm cov khoom siv hluav taws xob.
Khoom nta
Rotary rooj multi-chaw nres tsheb hloov chaw ua haujlwm: Ntau lub chaw nres tsheb sib hloov ua tiav kev thauj khoom, sib khi thiab tshem tawm, tshem tawm qhov xav tau ntawm phau ntawv nquag tos rau ib zaug - chaw nres tsheb ua haujlwm. Nrog kev ua haujlwm zoo thiab cov khoom siv ruaj khov, kev ntim khoom tuaj yeem txhim kho tau zoo, txawm tias qhov ua tau zoo tiag tiag yuav txawv raws li tus neeg ua haujlwm paub zoo thiab cov khoom sib xws.
Photoelectric precise positioning system: Txheeb xyuas daim npav daim npav qhov cim los ntawm photoelectric sensors, uas tuaj yeem ua kom raug txoj haujlwm ntawm cov thawv ntawv thiab daim npav, kom tsis txhob ntim cov khoom tsis zoo los ntawm misalignment, thiab txhim kho qhov sib xws ntawm cov khoom tiav.
NL5557 kev tiv thaiv lub txim: Thaum muaj plua plav lossis impurities nyob rau saum npoo ntawm lub thawv hlwv, nws tuaj yeem txiav tawm siab - zaus tso zis ntau zaus, tsis txhob hlawv cov thawv ntawv lossis daim npav thiab txo cov khoom poob.
Precision kub-tswj sealing tuag lub taub hau: Qhov ntsuas kub tuaj yeem hloov kho nyob rau hauv qhov tsim nyog, haum rau ua ntej- tsim cov thawv ntim khoom sib txawv xws li PVC thiab PET. Lub zog sealing yog ruaj khov, ua tau raws li cov qauv kev thauj mus los ntawm cov khoom siv hluav taws xob ntim khoom siv.
Khoom Parameters
| Yam khoom | Qauv 1 | Qauv 2 | Qauv 3 |
| Hwj chim | 8 kWm | 10 KW | 12 kWm |
| Qhov hluav taws xob | 380V 3P | 380V 3P | 380V 3P |
| Ntau zaus | 27.12 MHz | 27.12 MHz | 27.12 MHz |
| Lub zog nkag | 15 KVA | 18 KVA | 22 kVA |
| Rectifier | Silicon Diode | Silicon Diode | Silicon Diode |
| Electron Tube | 7t85 wb | 7t85 wb | 8t85 wb |
| Siab | 0.4-0.7MPa | 0.4-0.7MPa | 0.5-0.8MPa |
| Lub sijhawm | 1-99s | 1-99s | 1-99s |
| Inner Size | 500 × 700 hli | 600 × 800 hli | 700 × 900 hli |
| Upper Size | 450 × 650 hli | 550 × 750 hli | 650 × 850 hli |
| Qhov Loj | 450 × 650 hli | 550 × 750 hli | 650 × 850 hli |
| Lub sijhawm vuam | 0.2-9.9s | 0.2-9.9s | 0.2-9.9s |
Qhov chaw nthuav dav nplooj duab
Daim ntawv thov Scenario

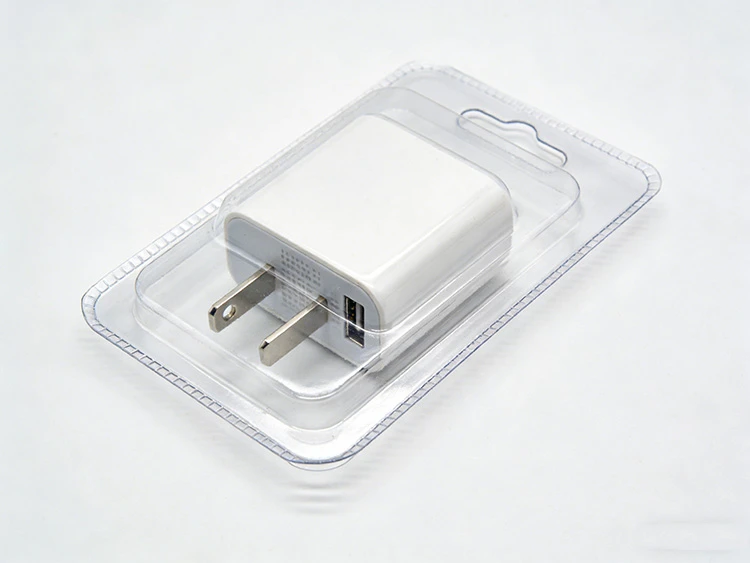

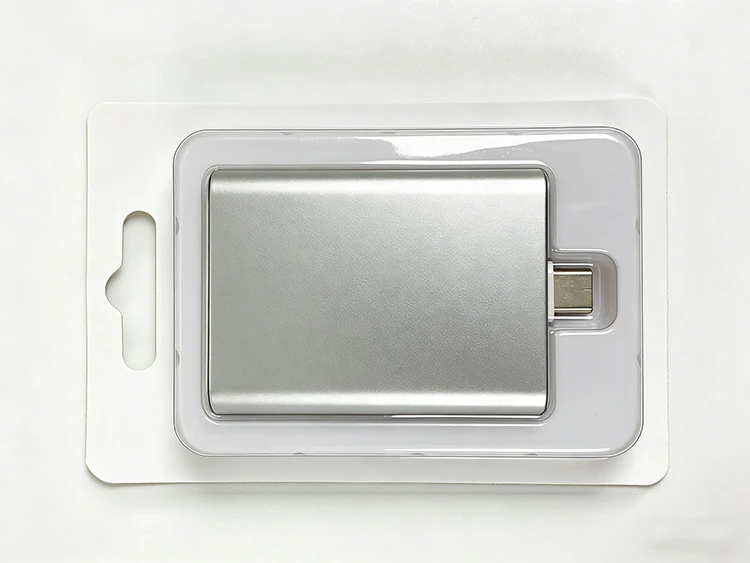

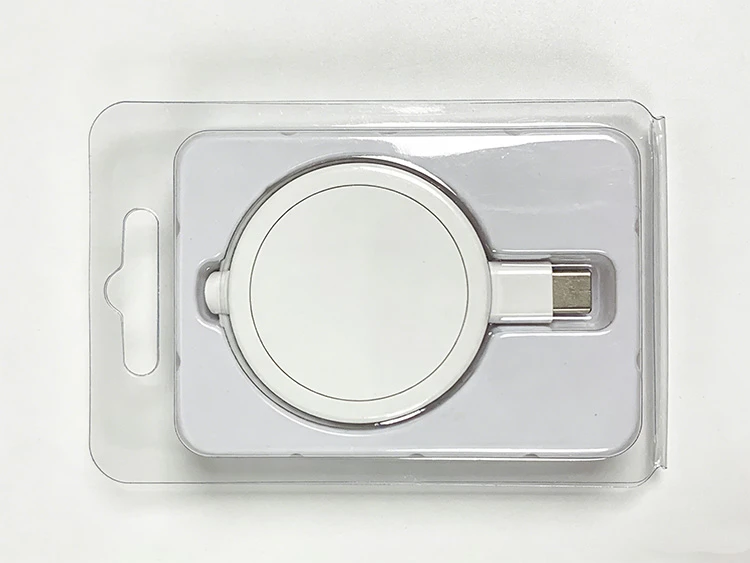

USB Charger Blister Box + Daim Npav Daim Npav Sealing Scenario: Cov chaw tsim khoom hluav taws xob yuav tsum muaj ntau yam - pob USB chargers. Thaum manually sealing ua ntej - tsim blister thawv thiab ntawv phaib, ntawv daim ntawv misalignment thiab tsis zoo sealing feem ntau tshwm sim, cuam tshuam cov khoom zoo li thiab kev nyab xeeb kev thauj mus los. Lub tshuab tuaj yeem ua tiav sealing sai los ntawm cov lus teb ntau- chaw nres tsheb hloov chaw ua haujlwm + photoelectric meej qhov chaw, nrog kev ruaj khov thiab qhov chaw raug, ua tau raws li qhov xav tau ntawm kev xa khoom loj.

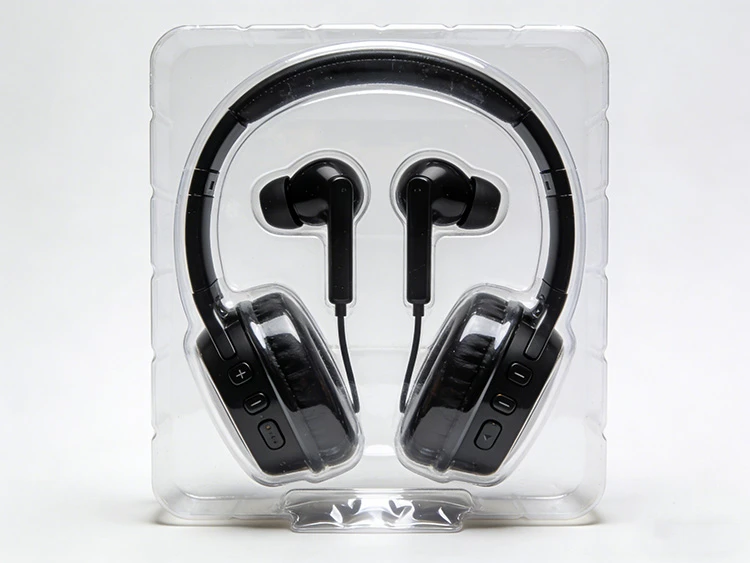

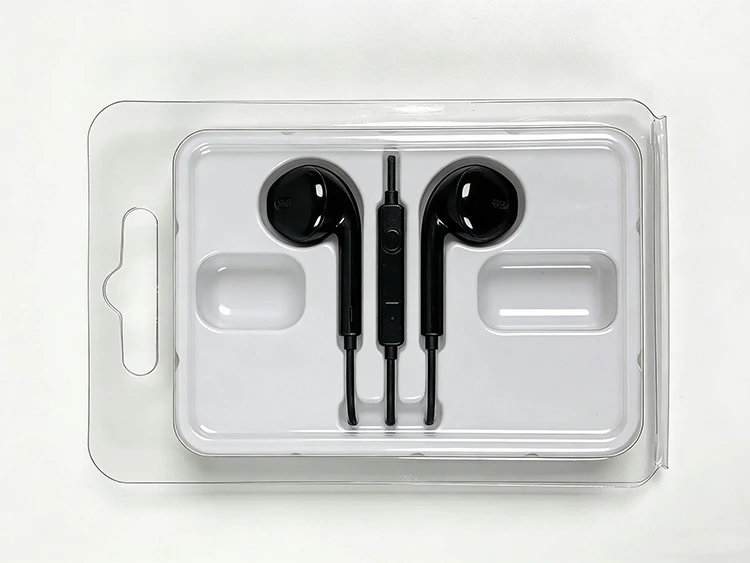

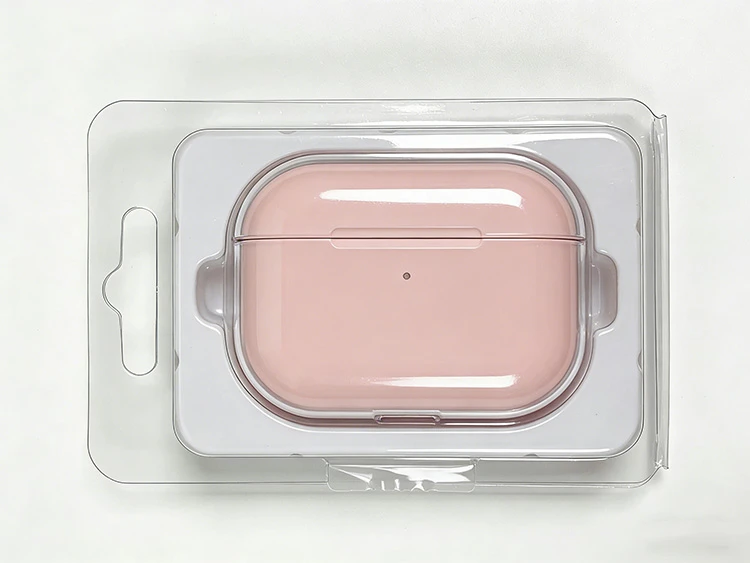

Lub Pob Ntseg / Cov Ntaub Ntawv Cable Blister Box + Daim Npav Daim Npav Sealing Scenario: Rau lub teeb yuag thiab nyias cov khoom siv xws li pob ntseg thiab cov ntaub ntawv cables, phau ntawv sealing yog qhov ua rau lub pob hlwv deformation vim qhov tsis sib xws, lossis daim npav tsis zoo los thaiv cov khoom lag luam qhov rai. Lub tshuab qhov kub thiab txias- tswj lub taub hau tuag tuaj yeem kho lub siab kom ua tau raws li qhov xav tau ntim ntawm cov khoom siv hnyav. Tom qab sealing, lub hlwv lub thawv tsis deform thiab lub qhov rais yog unobstructed, txhim kho cov khoom tso saib nyhuv.
FAQ
Q: Lub tshuab puas tuaj yeem ua tiav ob qho tib si tso thiab sib khi ntawm lub thawv blister thiab daim npav ib txhij?
A: Cov lus teb ntau- cov txheej txheem chaw nres tsheb txhawb synchronous positioning thiab sealing, tshem tawm qhov xav tau rau cov txheej txheem kev sib txuas ntxiv. Qhov chaw raug yog qhov ruaj khov, thiab cov khoom ntim tiav tuaj yeem siv ncaj qha rau kev ntim khoom thiab xa khoom.
Q: Nws puas tuaj yeem hloov kho rau daim npav nrog dai qhov tsim?
A: Txhawb kev sib khi ntawm daim npav daim npav nrog dai qhov. Lub photoelectric positioning system tuaj yeem txheeb xyuas txoj haujlwm ntawm daim npav dai qhov, thiab kev ncaj ncees ntawm qhov dai ntawm qhov tsis cuam tshuam tom qab kev sib khi, ua tau raws li qhov xav tau ntawm cov khoom lag luam rhawv.
Q: Nws puas tuaj yeem hloov kho ua ntej - tsim cov thawv ntim ntawm cov thicknesses sib txawv?
A: Qhov ntsuas kub siab tshaj -tswj lub taub hau tuag tuaj yeem kho qhov kub thiab txias raws li qhov tuab ntawm cov thawv hlwv. Cov thawv ntim nyias nyias tsis yooj yim rau deform, thiab cov thawv tuab tuab muaj qhov ruaj khov, haum rau ntim ntawm ntau yam tshwj xeeb ntawm cov khoom siv hluav taws xob.
Q: Cov khoom ntim khoom puas tuaj yeem dhau qhov kev xeem poob?
A: Lub siab - zaus molecular fusion tshuab ua rau lub thawv blister thiab daim ntawv ntawv haum nruj. Cov neeg siv khoom feem ntau tshaj tawm tias cov khoom ntim khoom tiav tuaj yeem dhau qhov kev kuaj pom kev thauj mus los tsis tau poob.
Q: Nws puas muaj teeb meem los hloov pwm rau cov thawv ntim khoom sib txawv?
A: Txais yuav sai - tso pwm tsim. Tom qab kev paub zoo, kev hloov pwm tsis tas yuav tsum muaj cov cuab yeej tshaj lij, thiab lub sijhawm hloov kho yog luv, uas tuaj yeem ua tau raws li qhov xav tau kev sib khi ntawm ntau yam - cov khoom siv hluav taws xob tshwj xeeb.
Q: Puas yog lub sealing kub hloov pauv tom qab lub tshuab ua haujlwm tsis tu ncua?
A: Nruab nrog lub kaw - voj tswj qhov kub thiab txias + cua txias qauv, qhov kub thiab txias hloov ntawm lub taub hau tuag yog tswj tsis pub dhau qhov tsim nyog thaum lub sijhawm ua haujlwm tas mus li, uas tuaj yeem ua kom muaj qhov sib xws ntawm kev sib khi.
Q: Puas yuav muaj ntxhiab tsw ntxhiab thaum lub sij hawm sealing?
A: Kev tswj xyuas qhov kub thiab txias tsim tuaj yeem tiv thaiv lub thawv hlwv los ntawm ntau dhau melting thiab peculiar tsw vim qhov kub thiab txias, thiab cov cuab yeej muaj cov qauv tsim nyog, uas tuaj yeem ua tau raws li kev tiv thaiv ib puag ncig ntawm kev cob qhia.
Q: Daim npav daim npav puas tuaj yeem raug kaw?
A: Txhawb kev sib khi ntawm daim npav daim npav nrog lub qhov rais pob tshab. Lub photoelectric positioning tuaj yeem zam qhov chaw ntawm lub qhov rais, thiab lub pob tshab ntawm lub qhov rais tsis cuam tshuam tom qab kev sib khi, tsis muaj kev thaiv cov khoom lag luam.
